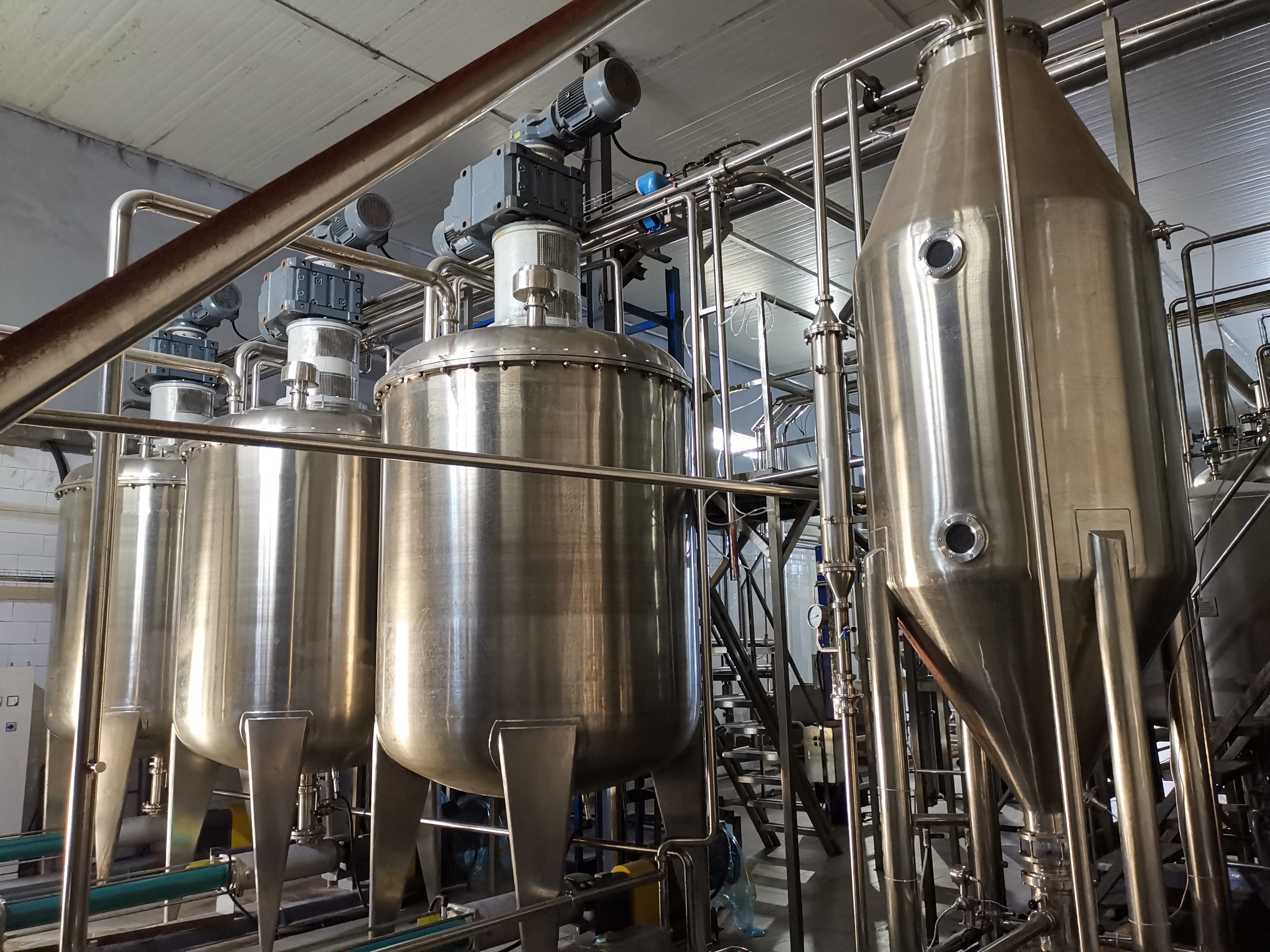

Ambient Temperature Mixing And Blending Tank System Capacity From 1 Ton / Hour To 15 Tons / Hour

Ambient temperature mixing and blending tank system, production capacity from 1 Ton/Hour to 15 Tons/Hour

Main Features & Specifications ( Taking a 10 tons/hour equipment as an example) :

• Single wall tank, working volume 6000L, and gross volume of 6500L.
• Tank made of 316L stainless steel, sanitary polishing, dome thickness of 8mm, shell thickness of 6mm.
• Frame & blade type mixer, double mixer, Danfoss frequency speed control.
• Guomao motor & reducer, with power of 11Kw/9.0Kw.
• Equipped with man way, tomato paste inlet & outlet, auxiliary material inlet, hot water inlet, CIP port, sample port, and one port for standby.
• Removable grid at man way
• Preparing at normal temperature
• Products outlet of DN100
