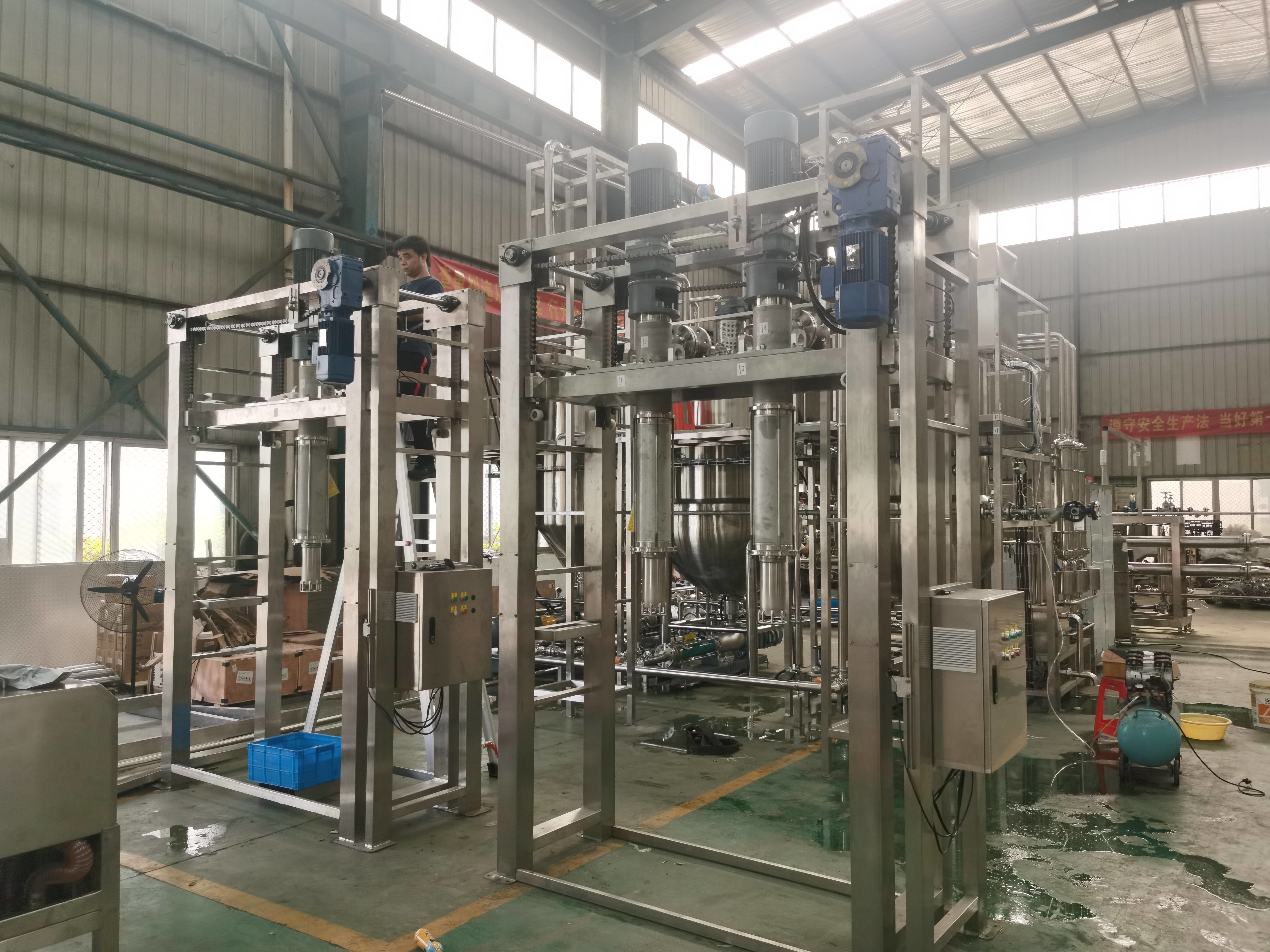

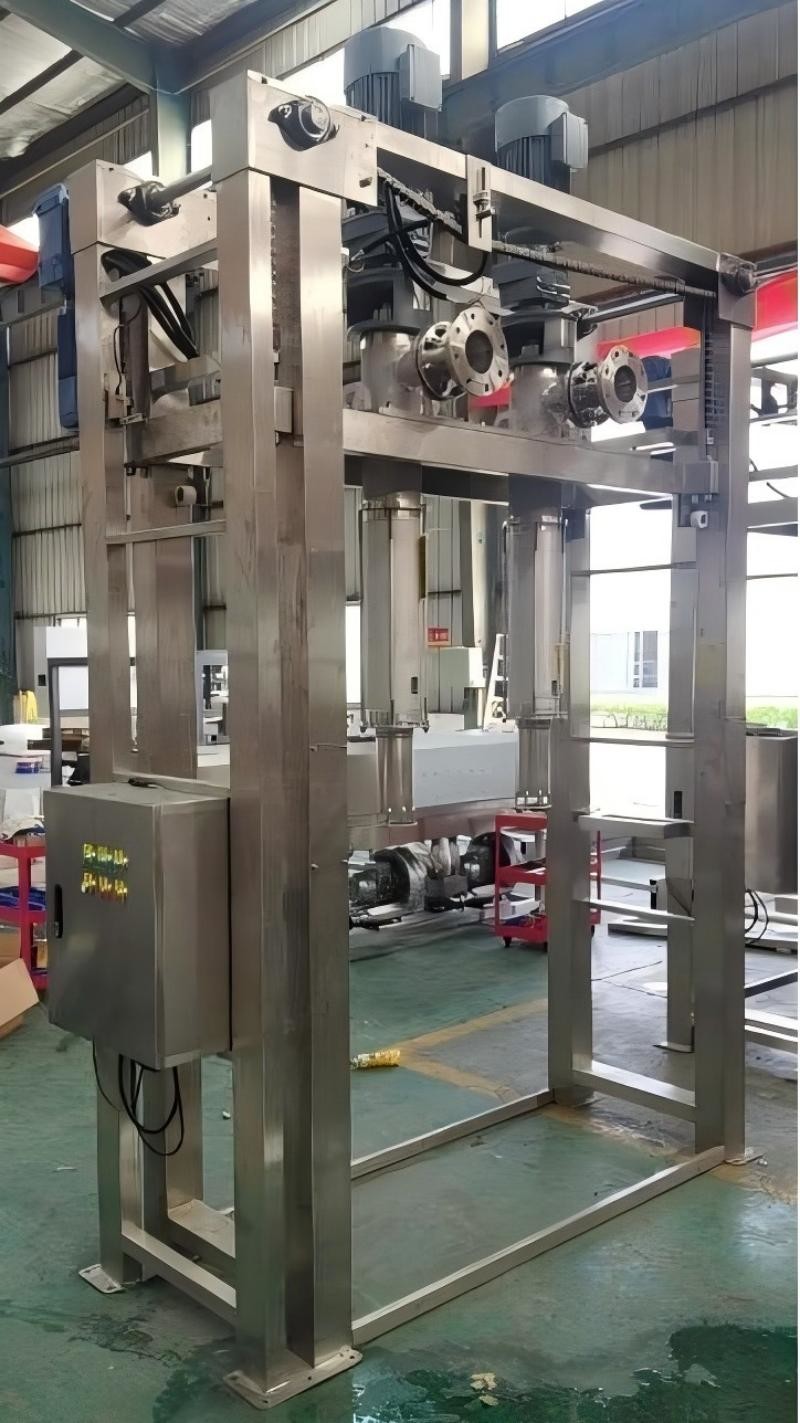

Electric Lifting Type Drum Paste Discharging System Capacity From 1 Ton / Hour To 15 Tons / Hour

Electric lifting type drum paste discharging system, production capacity from 1 Ton/Hour to 15 Tons/Hour

Main Features & Specifications ( Taking a 3 tons/hour equipment as an example) :

1) The rack material: SUS304;

2) The main frame is made of 100mm * 100mm * 3mm stainless steel pipe;

3) The screw pump is supported by 20mm thick steel plate and wrapped with 304 stainless steel plate.;

4) The lifting motor adopts 2.2KW and gear reducer with brake;

5) Equipped with two NETZSCH vertical screw pump (NM053BT02S12V 8M³/H);

6) Stainless steel electric cabinet;

7) Schneider low-voltage electrical appliance;

8) Dimensions of equipment: L2200mm *W600mm * H3200mm.
