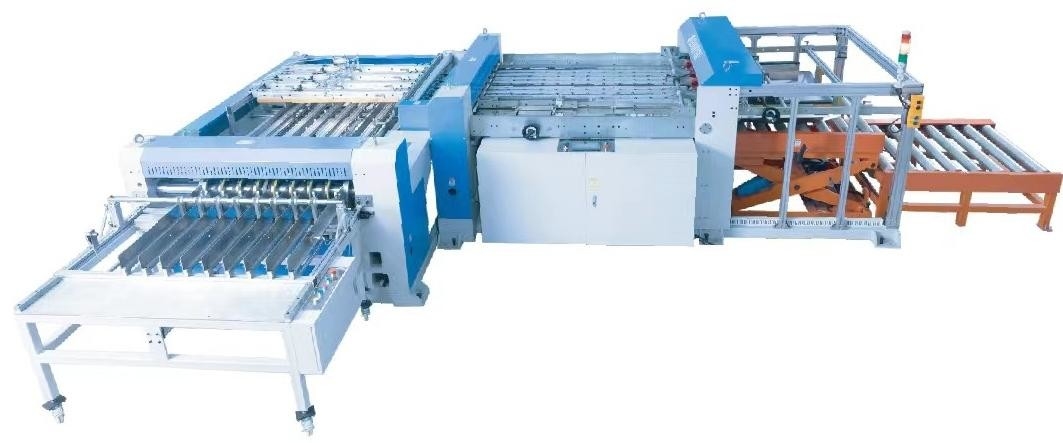

Full-automatic Duplex Gang Slitter Slitting Tinplate For Making Cans

Basic Information

Place of Origin:	CHINA
Brand Name:	JIAYUAN
Model Number:	JYFS10

Minimum Order Quantity:	1 set
Price:	To be quoted when contacting with us and let us know your detail request and specifications
Packaging Details:	Wrapping film packaging
Delivery Time:	Within 80 days since receipt of the advance payment
Payment Terms:	T/T for deposit, , T/T or L/C for balance payment before shipment
Supply Ability:	3 sets per month

Get Best Price Contact Now

Detail Information

Highlight:

slitting tinplate gang slitter

Full-automatic duplex gang slitter

duplex gang slitter

Product Description

Full-automatic duplex gang slitter, slitting tinplate for making cans

The full automatic duplex gang slitter is the first part of the entire tank production line. The tin plate slitting machine is suitable for cutting the iron sheet with corresponding blanking size (the blanking size is calculated according to the tank size). The control system of vertical and horizontal shearing or straight cutting board machine of our company is divided into mechanical and servo control systems.

Main features:

1. This machine for can-making company to slit tinplate precisely.

2. It is a necessary corollary equipment of high speed resistance welding machine.

3. Equipped with Siemens electric control components and NSK bearings.

4. The knives are made of entire carbide.

Technical parameters:

Model No.	JYFS10-A Mechanical synchronization	JYFS10-S Servo motor synchronization
Type Max Range of Cutting Sheet(mm)	1200*1200	1200*1200
Min Range of Cutting Sheet(mm)	600*600	600*600
Total Installation Power(kw)	4.5	10
Max cutting Speed(spm)	26	32
Accuracy(mm)	100*100 body blank ±0.05	100*100 body blank ±0.05
Min Can Dia(mm)	45	45
Min Can Height(mm)	70	70
Scrap Width(mm)	2.5-4	2.5-4
Compressed Air(m³/h)	0.8	0.8
Weight(kg)	5000	6600
Dimension(mm)	620058001300	670037001300
