Detail Information

Name:	Automatic Rotary Bottle Washing Machine, 2000bph-10000bph, 18-36 Cleaning Heads	Applicable Industries:	Manufacturing Plant, Retail, Food Shop, Food & Beverage Shops
Video Outgoing-inspection:	Provided	Processing:	Washer
Voltage:	380V 50HZ	Washing Speed:	2000-10000bph
Highlight:	Automatic Rotary Bottle Washing Machine , Automatic High Speed Bottle Washing Machine , Bottle Washing Equipment 2000bph

Product Description

Automatic Rotary Bottle Washing Machine, 2000bph-10000bph, 18-36 cleaning heads

Other attributes

Applicable Industries

Manufacturing Plant, Retail, Food Shop, Food & Beverage Shops

Showroom Location

None

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

Ordinary Product

Warranty of core components

1.5 years

Core Components

PLC, Gearbox, Motor

Place of Origin

Shandong, China

Weight

800 KG

Warranty

1 Year

Processing

Washer

Condition

New

Brand Name

Gofar

Voltage

380V 50HZ

Power

1.75

Dimension(L*W*H)

1300*1300*2000

Product name

Bottle Washing Machine

Washing speed

2000-10000bph

Washing heads

18-36 heads

Bottle type

PET Plastic Glass bottles

Cleaning method

Washing bottle inside and outside automatically

Control system

PLC+touch Screen Control

Material

SUS 304

Function

washing bottle inside and outside

Keywords

glass bottle washing machine

Key words

bottle water washing machine

Show less

Lead time

Quantity (sets)	1 - 1	> 1
Lead time (days)	50	To be negotiated

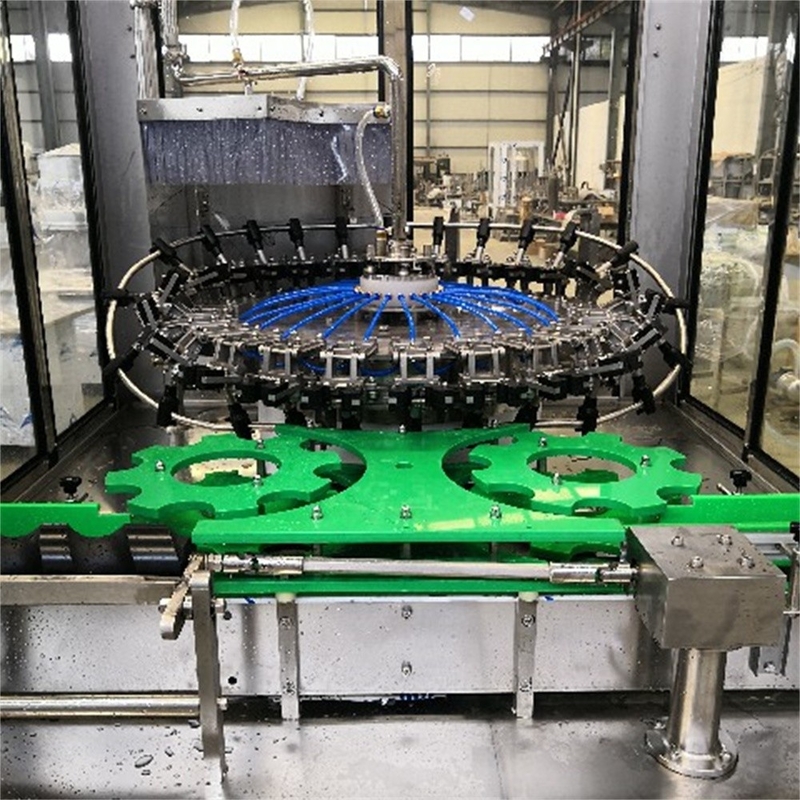

Automatic roatry bottle washing machine is mainly used for glass bottle, polyester bottle. It is suitable for wine, beverage, brewing bottle flushing before filling. Output 3500-12000 bottles/hour, available for users to adjust. The whole machine adopts the circular running flip bottle structure for washing, equipped with electrical control components and automatic flip bottle clamps with automatic clamping positioning bottle mouth which can automatic wash the bottle.

model	Washing heads	production efficiency	Applicable bottle type		Power (kw)	Size(mm)
model	Washing heads	production efficiency	Height (mm)	Diameter (mm)	Power (kw)	Size(mm)
GFQSP-18	18	3500	160-350	Φ50—Φ100	1.9	1400×1400×2200
GFQSP-24	24	5000	160-350	Φ50—Φ100	2.3	1600×1800×2200
GFQSP-30	30	6000	160-350	Φ50—Φ100	2.5	1700×2150×2200
GFQSP-40	40	8000	160-350	Φ50—Φ100	3	2000×2500×2200
GFQSP-48	48	10000	160-350	Φ50—Φ100	3.5	2200×2800×2200
GFQSP-60	60	12000	160-350	Φ50—Φ100	5	3000×3200×2200

Compared with the traditional bottle washing machine, its energy consumption, water consumption and space occupation are reduced by at least 80%. At the same time, it has little pollution to the environment and easy maintenance, so the cost of operation is also very low. The flushing system is designed with water circulation and filtration de

Tag:

Place of Origin:	CHINA
Brand Name:	QIHONG
Model Number:	GFQSP

Minimum Order Quantity:	1 set
Price:	To be quoted when contacting with the supplier
Packaging Details:	Wrapping film packaging
Delivery Time:	Within 50 days since advance payment
Payment Terms:	T/T for deposit, , T/T or L/C for balance payment before shipment
Supply Ability:	1 set per month
