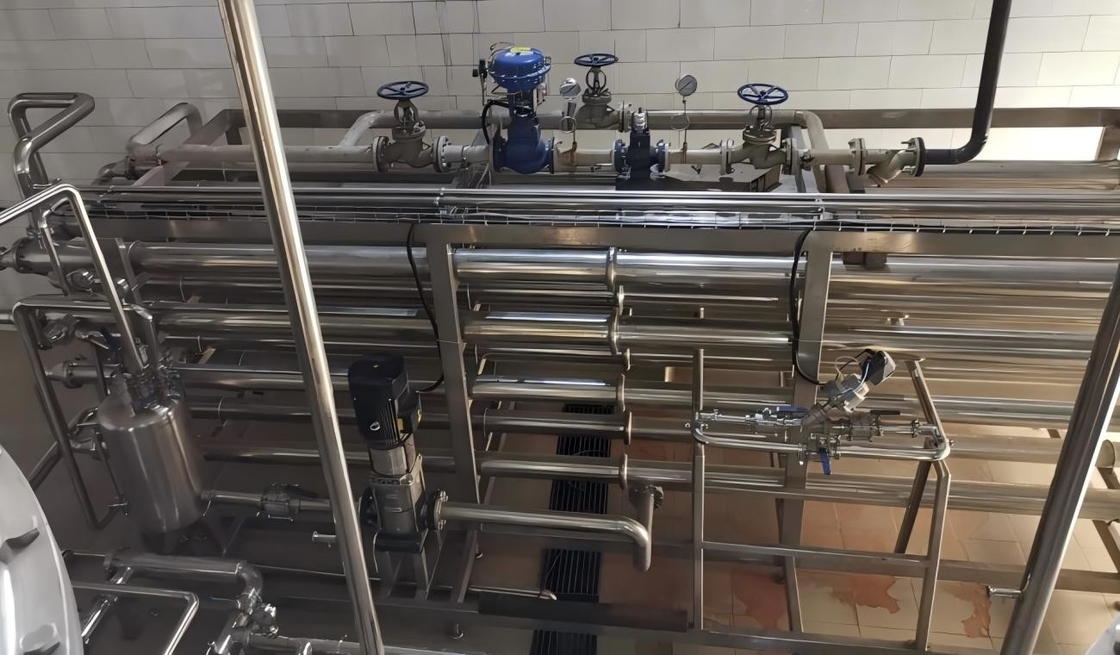

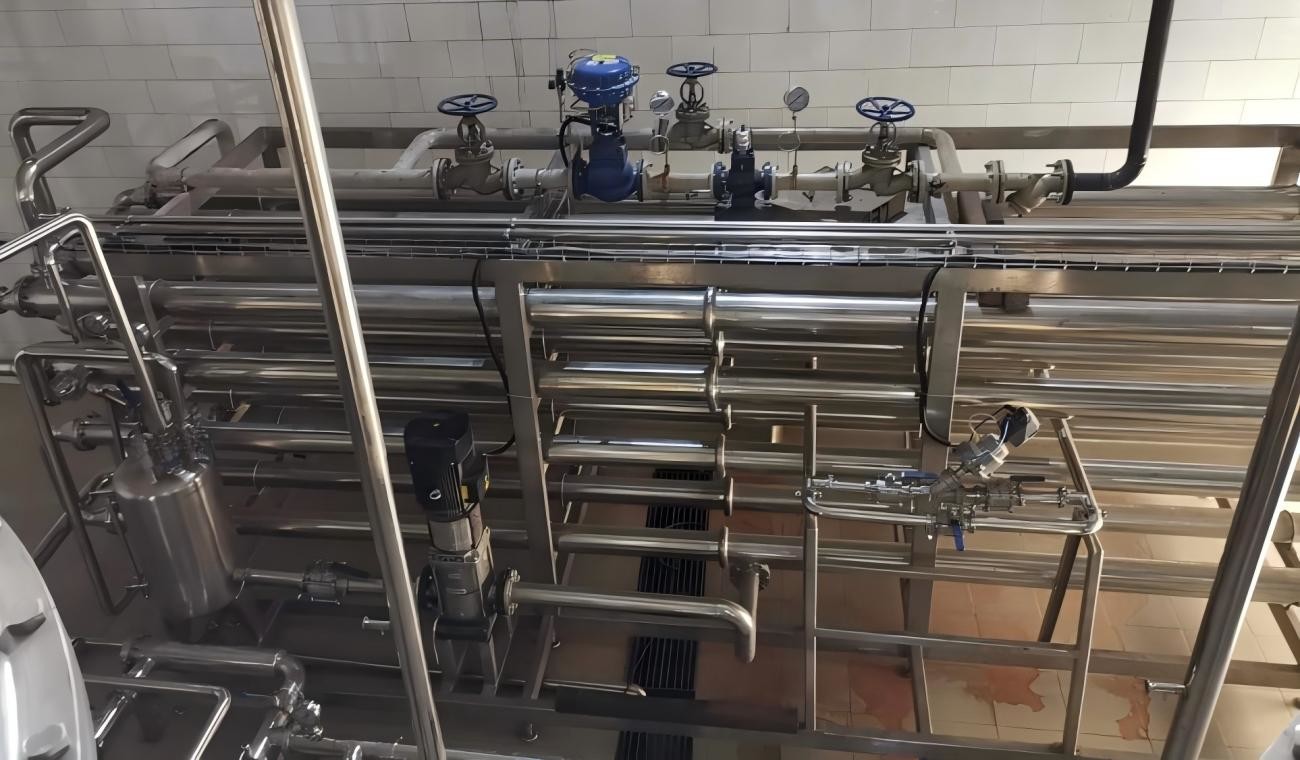

Tube In Tube Heating Sterilizing System From 1 Ton / Hour To 15 Tons / Hour

Tube in tube heating and sterilizing system, production capacity from 1 Ton/Hour to 15 Tons/Hour

Main Features & Specifications ( Taking a 3 tons/hour equipment as an example) :

• 3T/H tube in tube type heating and sterilizing system.

  Configurations:

• All products contacting parts are made of SUS316 stainless steel;
• Products feeding temperature: 65℃;
• Products discharging temperature: 88℃ -94℃;
• Working pressure: 24 Mpa;
• Three pieces fo sterilization tubes, length of 6m for each;
• One piece of column-tube heat exchanger, length of 3m;
• Spirax proportional regulating valve for steam control;
• Stop valve, filter, water trap valve;
• Scale control of hot water flow in preheating section;
• Industry multi-stage hot water pump from CNP;
• PT100 Monitoring the hot water temperature, product temperature inlet temperature, and hot water outlet temperature;
• Bimetal thermometer monitors hot water return temperature, product outlet temperature and product inlet temperature;

• Dimension: L7000mm * 1400mm * 2000mm
