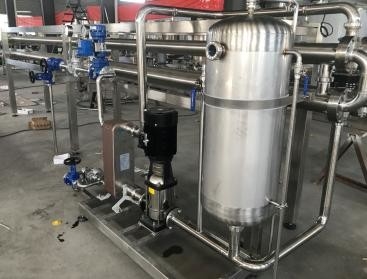

Tube In Tube UHT Sterilizing System Capacity Flow Rate Sterilizing Time Customized

Tube in tube UHT sterilizing system, capacity, flow rate, sterilizing time can be customized as per products to be sterilized

Main Features and Specifications:

• Manufactured with internationally advanced sterilization technology, this machine is a specialized sterilizer for high-viscosity materials, leading domestically. It features a unique four-layer casing structure designed specifically for sterilizing high-concentration materials.
• Capacity: 3000KG/H
• Sterilization temperature: 95℃ - 110℃
• Sterilization time: 120S
• Cooling water temperature: <25℃
• Tower water circulation rate: 50 tons/hour
• Steam consumption: 200KG/H
• Compressed air: 0.8m3/min
• Gross power: 70KW
• External dimensions: 650016002000 mm
• Includes a tube in tube heating section, sterilization section, cooling section, reflux section, material tank, hot water tank, electrical cabinet, heat exchanger, hot water pump, sterilization pump, high-pressure pump, two-position three-way pneumatic valve, two-position two-way pneumatic valve, steam valve assembly, and drain valve assembly.
• Steam proportional valve: SPIRAX SARCO UK
• Steam pressure reducing valve: Japan VENN
• Super-heated water heating ensures uniform heating to prevent burning
• Sterilization temperature: freely adjustable with a Fuji temperature controller for automatic temperature regulation
• Equipped with an automatic alarm and fault handling system to effectively prevent the output of unqualified products
• Electrical components, buttons, switches, and control elements are sourced from brands such as Schneider, Siemens, and Mitsubishi, while the frequency converter is from Envision and the temperature controller from Fuji.
